GaiaRay Portable Solar Power Station 500W With LifePo4 Battery
GaiaRay Portable Solar Power Station 500W With LifePo4 Battery
Couldn't load pickup availability
You can reliably power your essential electronics and small appliances anywhere without hunting for an outlet thanks to its robust LiFePO4 battery and versatile output array.

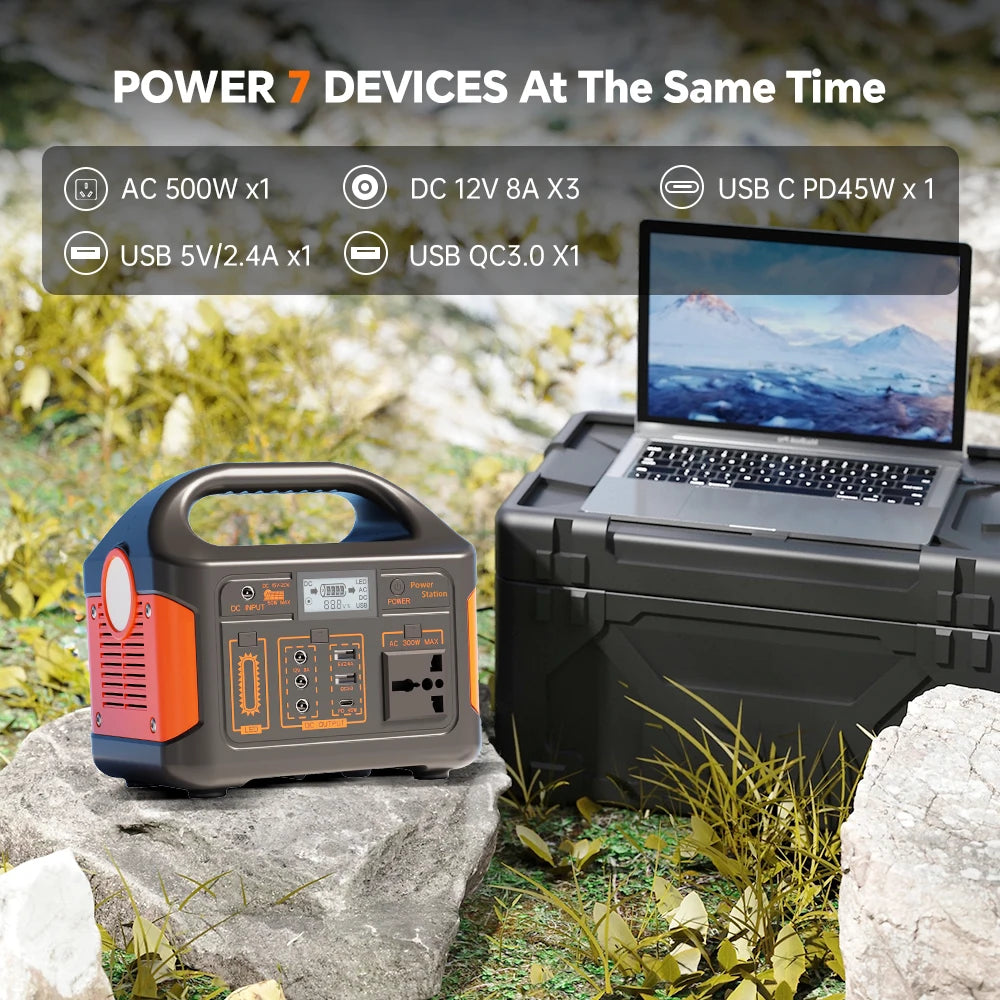

- Connect essentials and tools to multiple USB and DC outlets alongside 110V/220V sockets delivering stable modified or pure sine wave current.

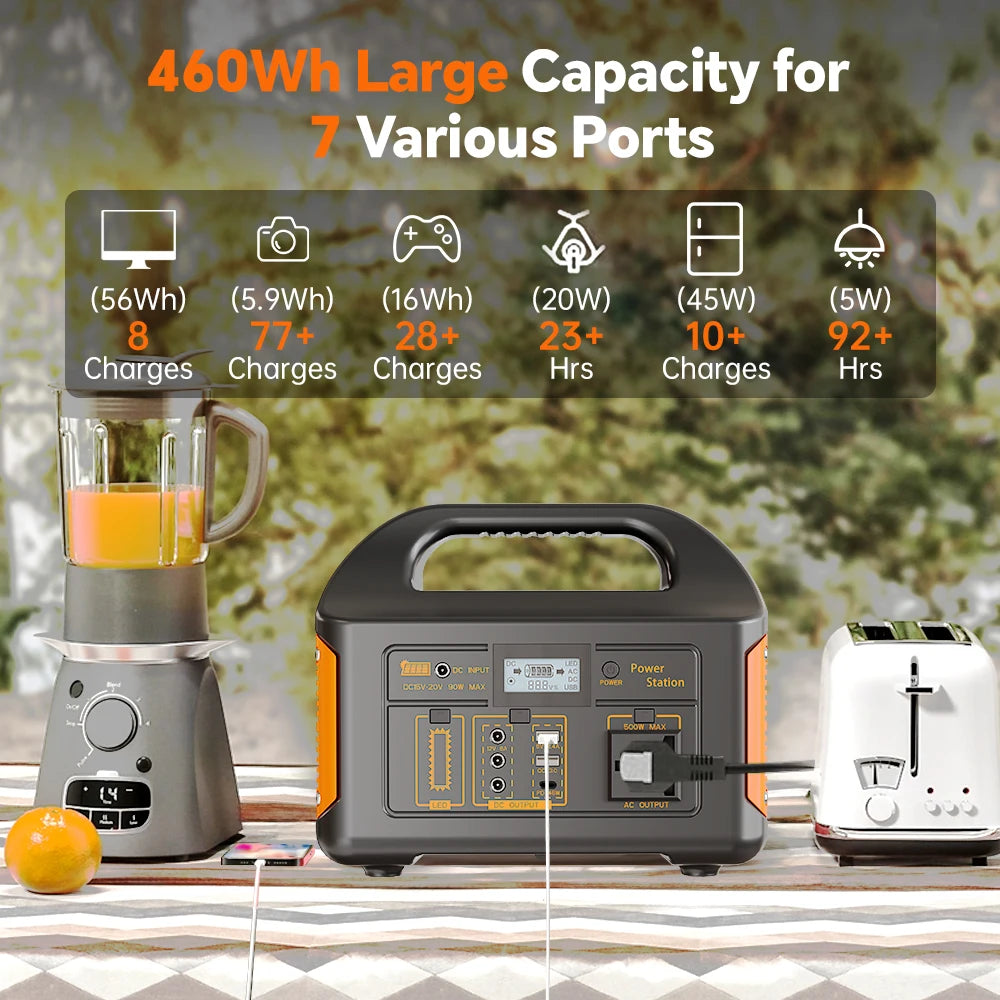

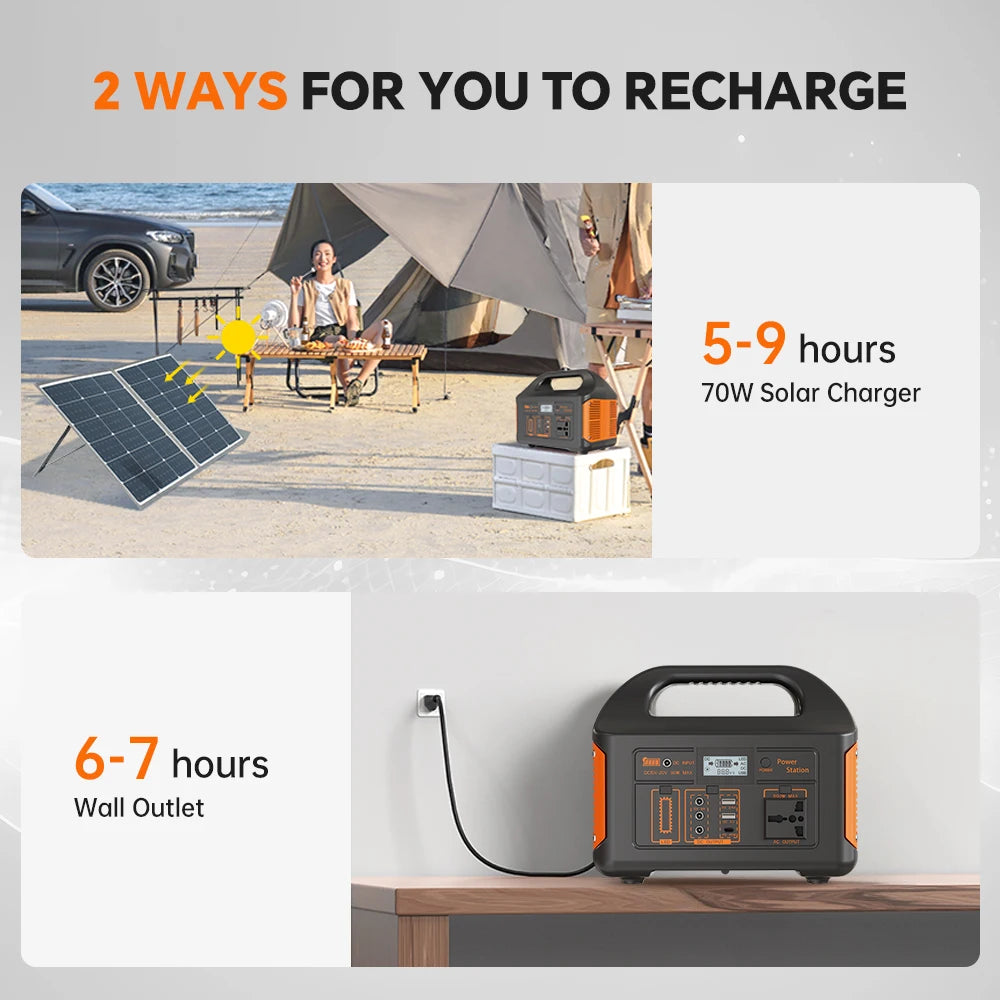

- Replenish the 460Wh storage efficiently by attaching a compatible panel to the built-in intelligent controller, accepting input up to 90W for faster off-grid recovery.
- Track your energy status precisely on the dedicated LCD screen that continuously displays voltage, state of charge, and discharge rates for accurate usage planning.
- Shield your equipment from surges through automatic limits on low voltage, overheating, and short circuits while the silent cooling fan stays under 45dB nearby.
Rated Power |
100W |
300W |
500W |
Output Waveforr |
Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
